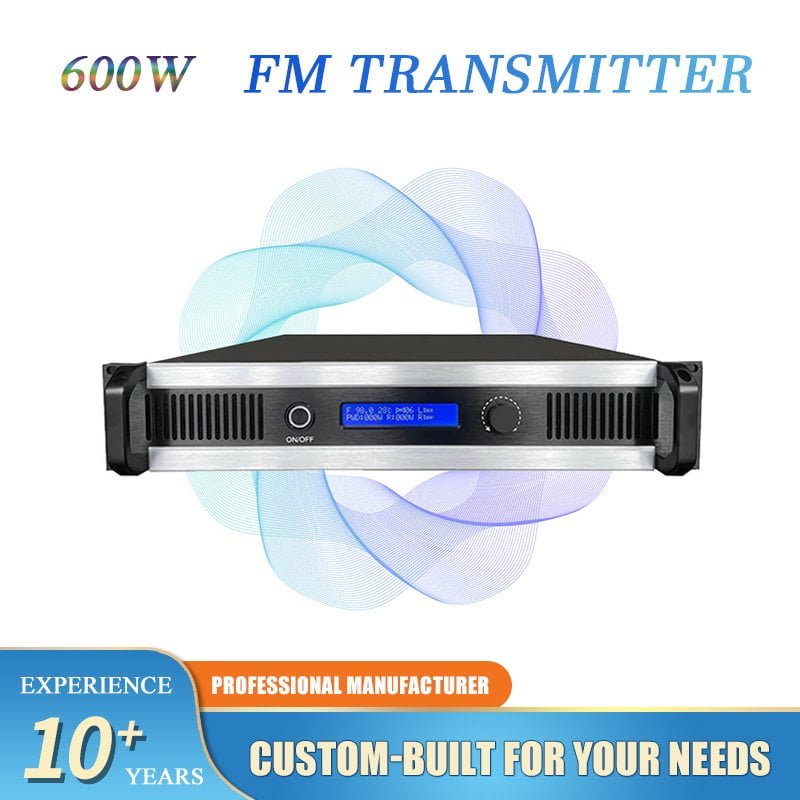

600W FM Transmitter for Professional Radio Broadcasting
Industrial-grade 600W FM transmitter engineered for continuous operation. Trusted by community radio stations, commercial broadcasters, and government projects across 50+ countries.
Reliable 600W FM Transmitter for 24/7 Radio Broadcasting
Whether you're launching a community station or expanding a commercial network, our 600W FM transmitter delivers uncompromising RF performance around the clock.
Designed For
Community Radio Stations
Serve entire cities and rural regions with crystal-clear FM signal.
Commercial FM Stations
High-efficiency output keeps operating costs low while maximizing reach.
Government Broadcasting
Meets regulatory standards for national and regional public broadcasting.
Campus Radio Systems
Ideal for universities and schools broadcasting across large campuses.
Key Technical Features
High RF Efficiency -- Up to 80%
Advanced LDMOS transistor technology converts more power into signal, reducing heat and electricity consumption significantly.
Stable Operation in Hot Environments
Intelligent thermal management with over-temperature protection activates automatically at 60°C, preventing hardware damage.
Remote Web Monitoring
Monitor and control transmitter parameters remotely via built-in web interface -- no on-site engineer required.
VSWR Protection System
Automatically monitors antenna and RF connection status to protect the transmitter from high VSWR conditions.
Low Maintenance Design
Modular architecture allows individual component replacement without shutting down the entire unit, minimizing downtime.
Product Details
Here are the specification details of our reliable 600W FM transmitter.
| Specification | Value |
|---|---|
| Frequency Range | 87.0MHz ~ 108MHz |
| Frequency Setting Step | 10KHz |
| Carrier Frequency Precision | ±200Hz |
| Residual Wave Radiation | ≥65dBc |
| Audio Input Impedance | 600Ω, Balance |
| Separation | 60dB |
| Pilot Signal Modulation | 8% ~ 10% |
| Sub-carrier Suppression | ≥65dB |
| Audio Input Level | ±10dBm, Step 0.01dB |
| S/N | ≥75dB (30Hz ~ 15KHz, 100%) |
| Audio Harmonic Distortion | <0.05% |
| Audio Response | ±0.05dB (30Hz ~ 15KHz) |
| Output Load Impedance | 50Ω |
| Output Power | 0 ~ 600W |
| Deviation | ±75KHz |
| Size | 460mm × 480mm × 88mm |
| Weight | 15KG |
Send Inquiry

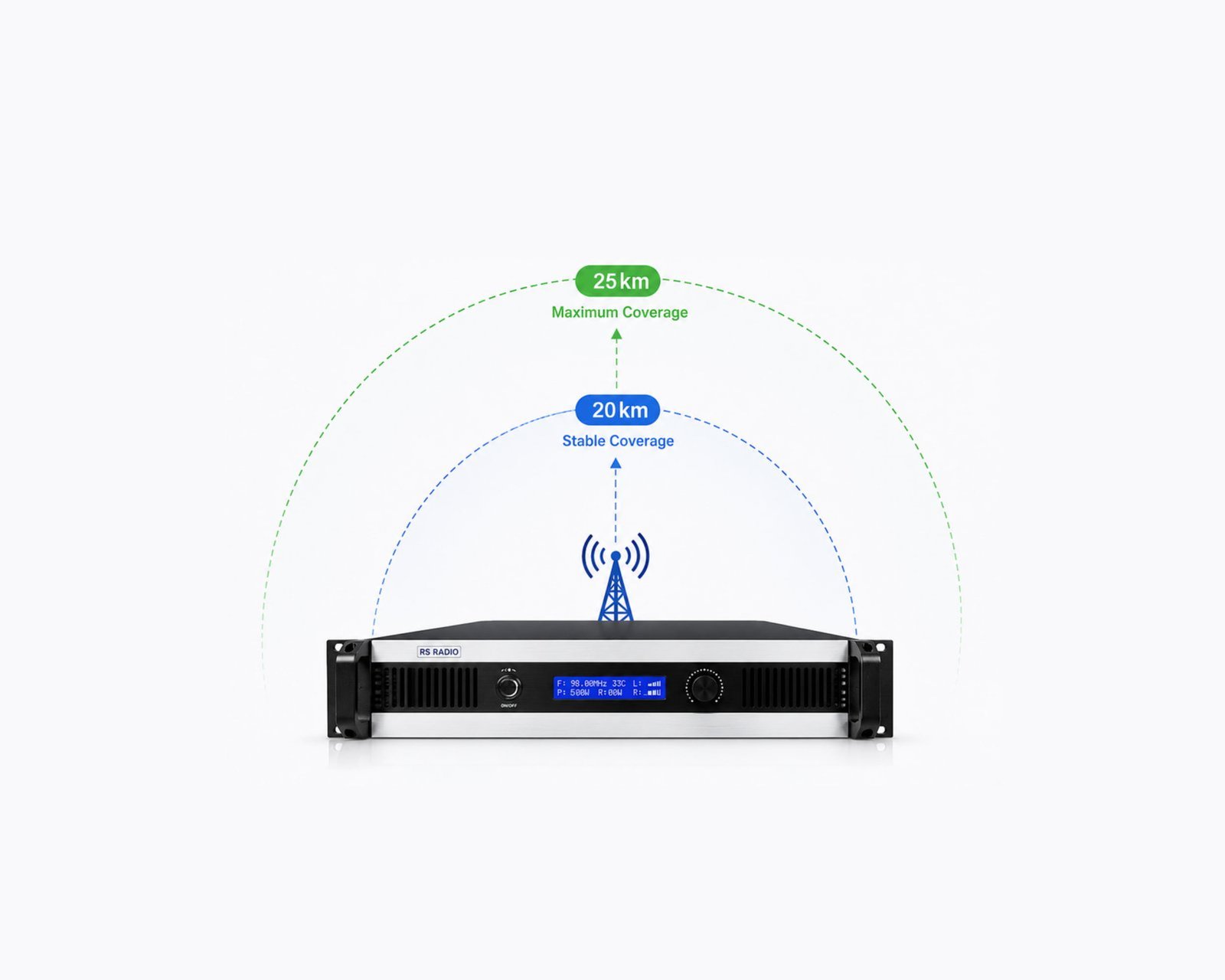

How Far Can a 600W FM Transmitter Cover?
Coverage range depends on transmitter power, antenna height, terrain, and antenna gain. Below is a practical reference guide based on real-world deployments.
FM Transmitter Power vs. Coverage Distance
* Estimates based on dipole antenna at 30m height. Actual range varies with local terrain and interference.
Reliable FM Coverage
What Affects Your 600W FM Coverage?
Antenna Height
The higher your antenna, the farther the signal travels. A 600W transmitter with an antenna at 60m can cover over 35km on flat terrain. Doubling the antenna height increases range by approximately 40%.
Antenna Gain (dBd)
A high-gain directional or multi-bay antenna dramatically extends range. Pairing your 600W transmitter with a 4-bay FM dipole antenna can boost effective range by 30-50% compared to a standard dipole.
Terrain & Obstructions
Mountains, dense forests, and urban high-rises reduce effective coverage. Coastal and flat savanna environments achieve the maximum rated range. Hilly regions may require relay stations.
Cable Quality & Length
Signal loss in the coaxial cable between transmitter and antenna reduces effective radiated power. Using low-loss 7/8" or 1-5/8" coaxial cable minimizes attenuation and preserves coverage range.
Why Many 600W FM Transmitters Fail in Tropical Areas
High temperatures, humidity, and unstable power grids are the #1 cause of transmitter failure in Africa, Southeast Asia, and Latin America. Here's why our 600W FM transmitter is specifically engineered to survive.
Common Failure Points in Tropical Climates
Transistor Thermal Runaway
Cheap transistors fail above 45°C. In Nigeria, Ghana, or the Philippines, ambient temperatures regularly exceed this -- causing irreversible damage within months.
Humidity & Corrosion
Coastal and rainforest stations face 80-100% humidity. PCB corrosion and connector oxidation destroy circuits that aren't properly sealed and coated.
Voltage Fluctuations
Unreliable grid power with sudden spikes and brown-outs destroys power supply units in transmitters that lack wide-range voltage tolerance.
How Our 600W Transmitter Solves These Problems
Auto Over-Temperature Protection at 60°C
When internal temperature reaches 60°C, the transmitter automatically reduces power or shuts down safely -- protecting all components from heat damage.
Industrial LDMOS Transistors
We use military-grade LDMOS RF transistors rated for continuous operation in high-temperature environments, not consumer-grade components.
Wide-Range Power Supply (85-265V AC)
Built-in universal power supply handles extreme voltage fluctuations common in Africa and Southeast Asia without requiring an external stabilizer.
Complete 600W FM Radio Station Package
A transmitter alone won't broadcast. You need three essential components to get on air: transmitter + antenna + coaxial cable. And we also offer complete packages so you get everything from one manufacturer at the best price.
600W FM Transmitter
The heart of your broadcast system. Converts audio to a high-power FM signal ready for transmission. Includes all audio inputs, control interfaces, and protection systems.
- Solid-state LDMOS amplifiers
- Built-in DSP stereo processor
- Remote monitoring via Ethernet
FM Broadcast Antenna
Radiates your signal in all directions with maximum efficiency. Antenna gain and height directly determine your coverage radius -- the right antenna can double your effective range.
- FM Dipole Antenna
- Matched to 600W power rating
- Stainless steel construction
Low-Loss Coaxial Cable
Carries the RF signal from transmitter to antenna with minimal power loss. For 600W systems, we recommend 1-5/8" low-loss coaxial cable to preserve your full output power.
- 1/2”, 1-5/8" or 7/8" options
- Pre-terminated connectors
- Custom lengths available
Related FM Transmitter Broadcast Equipments
Mixing Console
Our mixing console allows precise control over different audio channels, making it easy to manage and balance multiple sound sources.
Audio Processor
Our audio processor can enhance your audio quality and is built for long-lasting durability.
Monitor Speaker
Monitor speakers allow you to hear your audio exactly as it is for precise monitoring and adjustment.
Studio MIC
The studio microphone can capture clear, detailed sound, ensuring your voice is natural, clean, and professional for broadcasting.
Table Microphone Stands
Our table microphone stands offer 360° rotation, they are very stable and convenient for your broadcasting.
Closed Listening Headphones
Our closed-back headphones provide clear, isolated sound with minimal leakage, ideal for accurate monitoring during broadcasting.
How to Install a 600W FM Transmitter?
-
✔
Install the FM Antenna
Set the broadcast antenna in an open and elevated position, preferably around 30 meters high for better coverage.
-
✔
Connect the RF Cable
Use a high-quality 50Ω coaxial cable to connect the antenna to the FM transmitter securely.
-
✔
Connect the Audio Source
Connect your mixer, microphone, computer, or audio player to the transmitter audio input interface.
-
✔
Set the FM Frequency
Choose an unused FM frequency between 87.5 MHz and 108 MHz to avoid local signal interference.
-
✔
Power On and Test
Turn on the transmitter and verify the broadcast signal, audio quality, and SWR status for safe operation.
Video Guide
600W FM Transmitter Installation Demo
Recorded in our factory, this video shows the real setup and testing process of our FM transmitters and broadcasting systems.
About Our 600W FM Transmitter
RS-RADIO is a professional FM transmitter manufacturer based in Liaoning, China, specializing in FM broadcast transmitters ranging from 7W to 10KW. Our 600W FM transmitter is one of our most popular models, widely used by radio stations across Africa, Southeast Asia, Latin America, and North America.
The 600W FM transmitter operates in the standard FM broadcast band of 87.5-108 MHz and is designed for continuous 24/7 operation. With up to 80% RF efficiency, it delivers maximum radiated power while minimizing electricity consumption -- a critical advantage for stations in regions with high energy costs or unreliable power infrastructure.
All RS FM transmitters are FCC and CE certified, ensuring compliance with international broadcast regulations. Our 600W model is available as a standalone unit or as part of a complete FM radio station package including antenna, coaxial cable, and accessories. Factory-direct pricing eliminates middlemen, and our 5-year warranty is among the longest offered by any FM transmitter manufacturer worldwide.
For buyers searching for a 600W FM transmitter, 600W FM broadcast transmitter, 600W FM radio station kit, or professional FM transmitter for community radio, Risheng Electronics offers reliable, high-performance equipment backed by direct manufacturer support and global shipping.
Who Uses a 600W FM Transmitter?
A 600W FM transmitter delivers reliable city-wide and district-level coverage -- the perfect power level for local broadcasters, community stations, and institutional radio operations.
Churches & Religious Organizations
Local churches, mosques, and ministries use 600W FM transmitters to broadcast sermons and worship services across their surrounding community, reaching listeners within a city or town.
Schools & Campus Radio
Schools, colleges, and universities run campus radio stations with 600W FM transmitters to broadcast educational content, announcements, and student programming to the local area.
Community Radio Stations
Community broadcasters use 600W FM transmitters to serve towns and districts with local news, music, and public interest programming without the cost of high-power equipment.
Drive-In Theaters & Events
Drive-in cinemas and outdoor event venues use 600W FM transmitters to broadcast audio directly to audience car radios, delivering clear, synchronized sound across the entire venue.
Factories & Industrial Facilities
Large factories and industrial parks deploy 600W FM transmitters for internal announcements, safety alerts, and background music broadcasting across expansive production floor areas.
Local FM Broadcast Stations
Independent local radio stations and broadcast equipment dealers choose 600W FM transmitters as a cost-effective solution for reliable city-level FM signal coverage.
