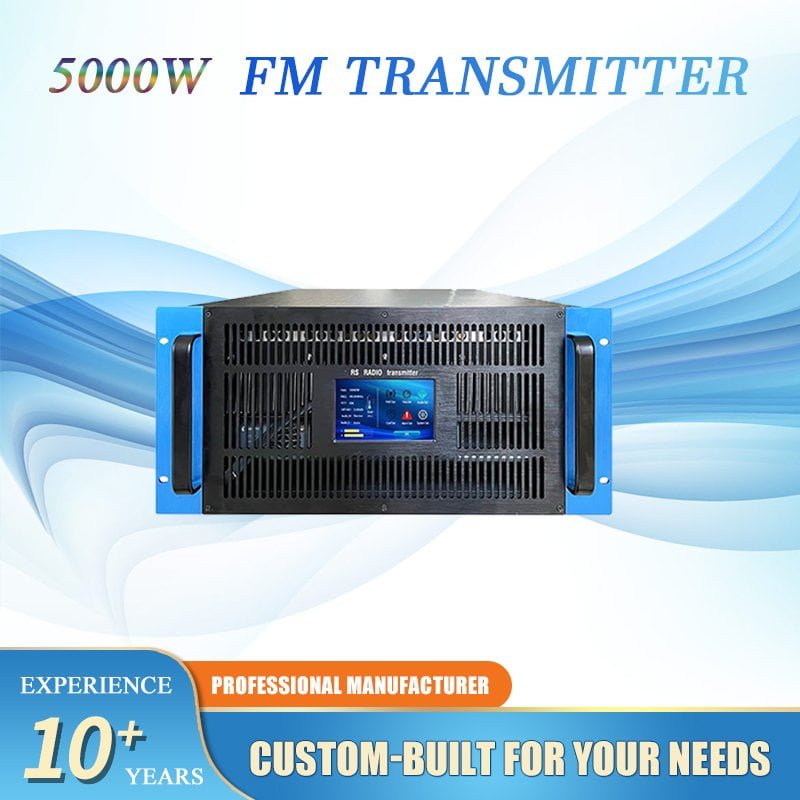

5KW FM Transmitter for Community & City Radio Broadcasting
Reliable solid-state transmitter, designed for large-scale FM radio broadcasting with coverage up to 80 km.
How Far Can a 5KW FM Transmitter Reach?
This is the most common question we get -- and the honest answer is: it depends on more than just wattage. Here's what actually determines your broadcast range.
A 5KW FM transmitter operating at full power can realistically cover a radius of 60 to 80 kilometers in open, flat terrain -- think rural plains, coastal lowlands, or agricultural regions. These figures are measured with a 30-meter antenna height under typical conditions.
The transmitter's wattage is only one piece of the puzzle. Antenna height is equally critical -- mounting your antenna at 100 meters versus 30 meters can double your effective coverage area. Antenna gain (measured in dBd), cable loss, and local terrain all play a role. That's why we always recommend discussing your installation site before finalizing equipment selection.
For reference, a 100W transmitter typically covers 7-12 km in a typical city environment, a 1KW unit reaches 25-30 km, and a 5KW system is the standard choice for regional FM stations that need to serve an entire city and its surrounding districts. All coverage data below is based on a 30m antenna height in ordinary urban environments.
FM Transmitter Power vs. Coverage Range
Reference values -- 30m antenna height, typical urban / city environment
| Power | Coverage Range (City) |
|---|---|
| 100W | 7-12 km |
| 500W | 20-25 km |
| 1KW | 25-30 km |
| 3KW | 40-70 km |
| 5KW ← You Are Here | 60-80 km |
| 10KW | 100-150 km |
Transmitter Power
5KW is the industry standard for regional coverage. More power means more signal margin -- especially important for mobile receivers in cars and buildings.
Antenna Height & Gain
Doubling antenna height can increase range by 40%. A high-gain antenna (6-8 dBd) combined with a 5KW transmitter outperforms a 10KW system with a poor antenna setup.
Terrain & Environment
Flat coastal plains give maximum range. Dense urban cores, mountain ranges, and heavy foliage reduce effective coverage. We help you calculate ERP for your specific location.
Everything You Need to Go On Air
The transmitter alone isn't enough. A functioning FM broadcast station requires three core components working together. We supply all of them -- properly matched and tested as a system.
Signal Chain Overview

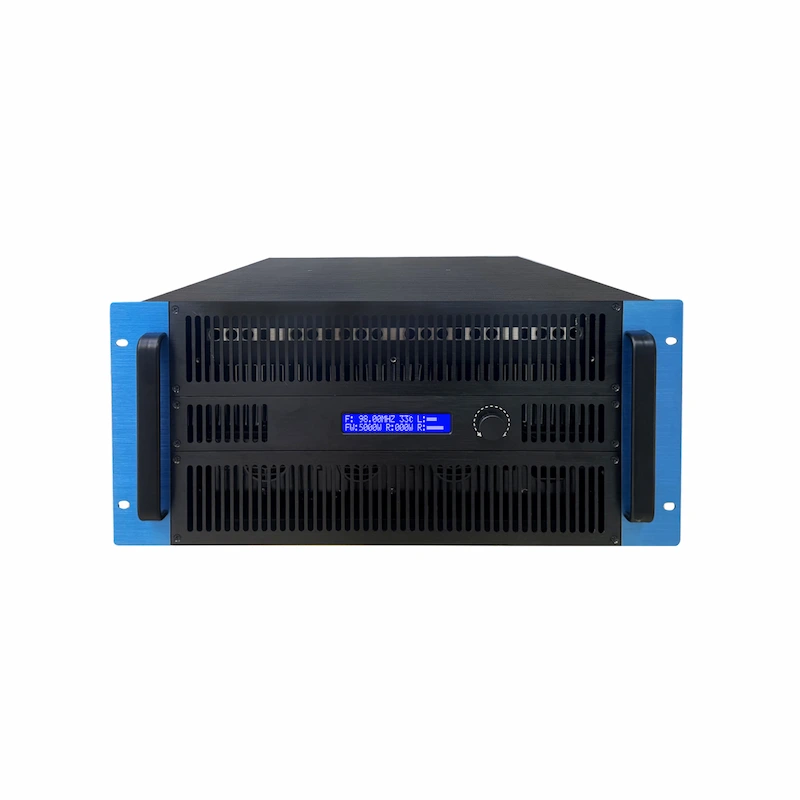

5KW FM Transmitter
The heart of your broadcast system. Converts audio to a high-power FM signal ready for transmission. Includes all audio inputs, control interfaces, and protection systems.
- Solid-state LDMOS amplifiers
- Built-in DSP stereo processor
- Remote monitoring via Ethernet
FM Broadcast Antenna
Radiates your signal in all directions with maximum efficiency. Antenna gain and height directly determine your coverage radius -- the right antenna can double your effective range.
- FM Dipole Antenna
- Matched to 5KW power rating
- Stainless steel construction
Low-Loss Coaxial Cable
Carries the RF signal from transmitter to antenna with minimal power loss. For 5KW systems, we recommend 1-5/8" low-loss coaxial cable to preserve your full output power.
- 1/2”, 1-5/8" or 7/8" options
- Pre-terminated connectors
- Custom lengths available
Need a Complete Broadcast Station?
We offer complete 5KW FM broadcast station packages --Apart from that, we also provide STL, audio processor, mixing console, studio microphones, table microphone stands, monitor speakers, and other related broadcasting equipments. All equipment is carefully selected, pre-matched, and tested to work together as a complete broadcast solution. Contact us for a custom quote based on your site requirements.
Get a Complete Station QuoteBuilt to Stay On-Air
Every Risheng transmitter ships with hardware-level protection systems and remote management capabilities -- engineered for stations where going off-air is not an option.
VSWR Protection
Built-in VSWR circuitry detects antenna impedance mismatches in milliseconds. Whether caused by a connector failure, lightning strike on the feedline, or a damaged antenna element, reflected power triggers an automatic hardware fold-back -- protecting PA transistors before damage occurs.
Over-Temperature Protection
When internal temperature reaches 60°C, a hardware thermal circuit automatically reduces output power or initiates a controlled shutdown -- protecting final-stage transistors. The fault is logged in the fault register and pushed as an alert via remote monitoring. The transmitter resumes normal operation automatically once temperature drops to a safe threshold.
Remote Telemetry
Monitor your transmitter in real time via built-in Ethernet interface. Read forward power, reflected power, VSWR ratio, PA module temperatures, supply voltages, and fault codes -- without being on-site. Optional RS-232/RS-485 and SNMP integration available on select models for third-party NMS compatibility.
Hot-Swappable Modules
On the 5KW FM transmitter, each PA module is hot-swappable. Remove and replace a failed module while the transmitter stays on-air -- remaining modules continue broadcasting at reduced combined power. No shutdown, no broadcast interruption. Replacement modules ship from our factory within 48 hours under warranty.
Low Reflected Power Redundancy
In the multi-module combiner architecture, each PA module monitors its own reflected power independently. If one module detects excessive reflected power, it isolates itself from the combiner output without taking down the entire transmitter. Combined with VSWR fold-back, this provides two independent layers of protection for both your antenna system and on-air continuity.
Remote Control
Adjust power level, change frequency, mute/unmute output, and reset faults remotely via web interface or SNMP -- no site visit required. For stations operating unmanned transmitter sites, this eliminates the need for physical presence during routine adjustments or fault recovery. Full control from anywhere in the world.
Two Independent Protection Layers
VSWR fold-back and low reflected power module isolation work simultaneously and independently. Even if one protection mechanism is engaged, the other remains fully active -- your PA transistors and your broadcast are protected by design, not by luck.
What You Can Monitor Remotely
- Forward power output (real-time)
- Reflected power & VSWR ratio
- PA module temperatures per module
- Supply voltages & current draw
- Active fault codes & fault history log
What You Can Control Remotely
- Output power level adjustment (10%-100%)
- Frequency change within 87.5-108 MHz
- Mute / unmute RF output
- Fault reset after review
- Individual module enable / disable (5U series)
Why Buy Direct from the Manufacturer?
Source factory pricing, no middlemen, full engineering support
5-Year Warranty
The longest warranty in the industry. We stand behind every unit we ship.
Factory Pricing
No distributor markup. You're buying directly from the production facility in China.
Free Shipping
Free delivery to most countries. Your transmitter arrives ready to install.
WhatsApp Support
Direct line to our engineers. We create a dedicated support group for every installation.
Technical Specifications
The numbers that matter to broadcast engineers. These are real measured values from our production units, not marketing estimates.
RF Performance
Audio & Modulation
Power & Environment
Physical & Compliance
Who Actually Needs a 5KW FM Transmitter?
5KW sits in a sweet spot -- powerful enough for serious regional reach, yet manageable in terms of infrastructure and operating cost. Here's who we typically work with.
Licensed Commercial Radio Stations
Regional FM stations covering a city and its outskirts are the most common 5KW customer. If you hold an FM broadcasting license and need to serve a population center of 500,000+ people, 5KW is typically the minimum recommended power.
Large Religious Broadcasting Networks
Churches and religious organizations in the Philippines, Nigeria, Ghana, and across sub-Saharan Africa often operate their own FM stations to reach congregations across entire provinces. A 5KW transmitter lets a single broadcast point serve communities across a wide geographic area.
Government & Public Broadcasters
Municipal governments, state-run broadcasters, and emergency alert networks in developing markets frequently deploy 5KW transmitters as their primary or backup broadcast infrastructure. Reliability and long warranty coverage are critical for these operators.
University & Campus Radio Stations
Larger universities with regional outreach programs need more than a low-power campus transmitter. A 5KW system allows an educational broadcaster to serve the surrounding city and establish a genuine community presence beyond the campus boundary.
Broadcast Equipment Dealers & Integrators
We supply directly to broadcast system integrators and resellers across Africa, Southeast Asia, and Latin America. If you're building out a station for a client, we can provide complete technical documentation, white-label support, and competitive wholesale pricing.
Rural Development & Agricultural Networks
In regions where internet penetration is low, FM radio remains the most effective mass communication tool. Agricultural extension programs, rural health campaigns, and community development organizations use 5KW transmitters to reach dispersed rural populations across large areas.
