500 Watt FM Transmitter Kit
$1960 USD
Specifications
Product Introduction

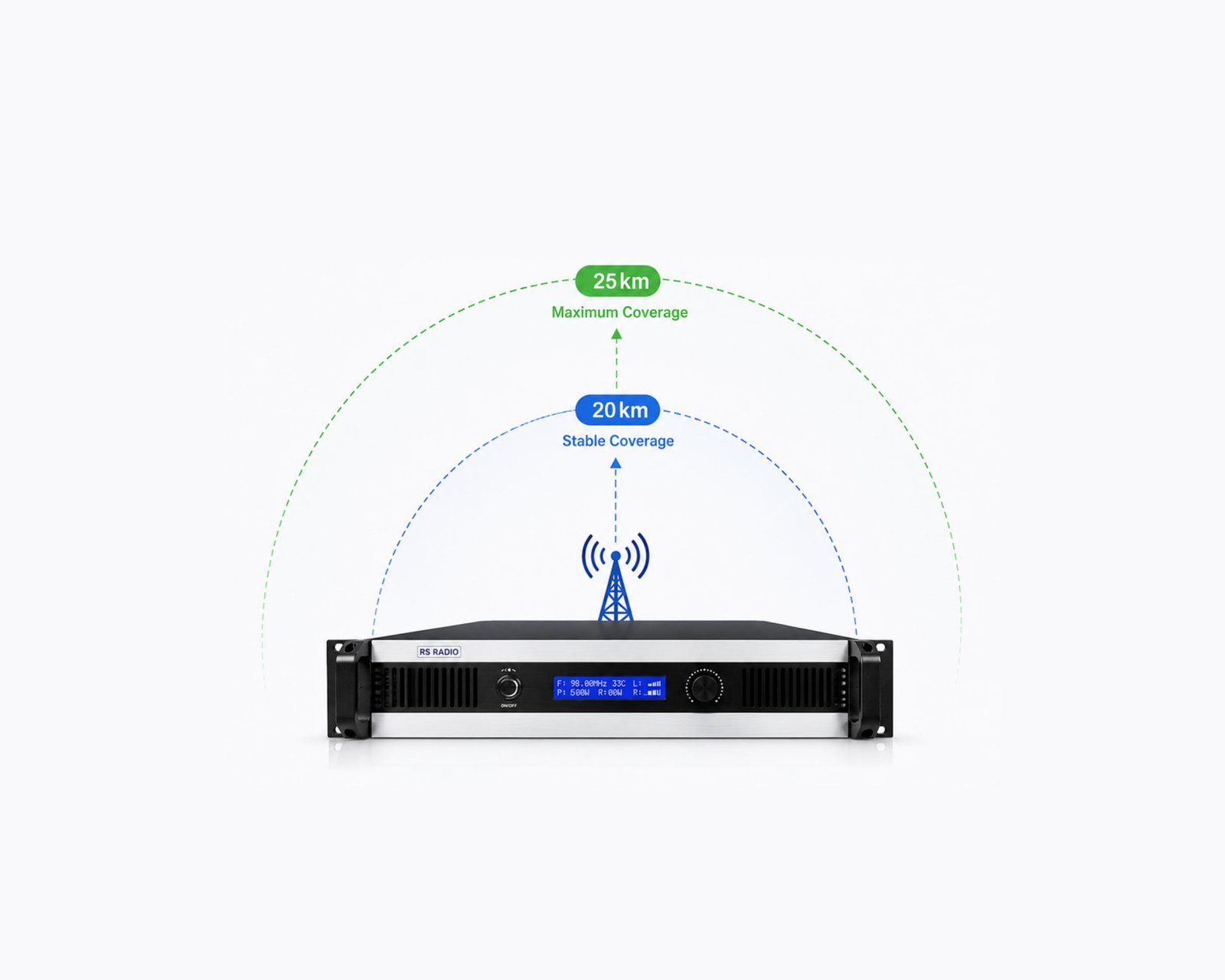

1. 500W FM Transmitter
The 500W FM transmitter is the core of this broadcast kit, featuring advanced LDMOS technology for efficient and stable RF power output. Built-in overheat and SWR protection, together with efficient heat dissipation, helps ensure reliable long-term operation for radio station applications.
2. 1-Bay Dipole Antenna
The 1-bay dipole antenna is designed for professional FM broadcasting across the 87.5–108 MHz frequency range. With 50-ohm impedance, vertical polarization, and up to 2.0 dB gain, it provides a practical antenna solution for the 500W FM transmitter.
| Specification | Details |
|---|---|
| Frequency Range | 87.5–108 MHz |
| Impedance | 50 Ohm |
| Connector | NK |
| VSWR | <1.35:1 Max |
| Polarization | Vertical |
| Dimensions | 1400 × 900 × 500 mm |
| Weight | 4 kg with mounting hardware |
| Gain | 2.0 dB Max |
| Max. Power Handling | 2 kW |
3. 30m 1/2" Feeder Cable
The kit includes one 30-meter 1/2" feeder cable for connecting the FM transmitter to the antenna. The low-loss coaxial cable is sized for professional FM broadcasting applications and provides a reliable RF connection between the transmitter and antenna system.
