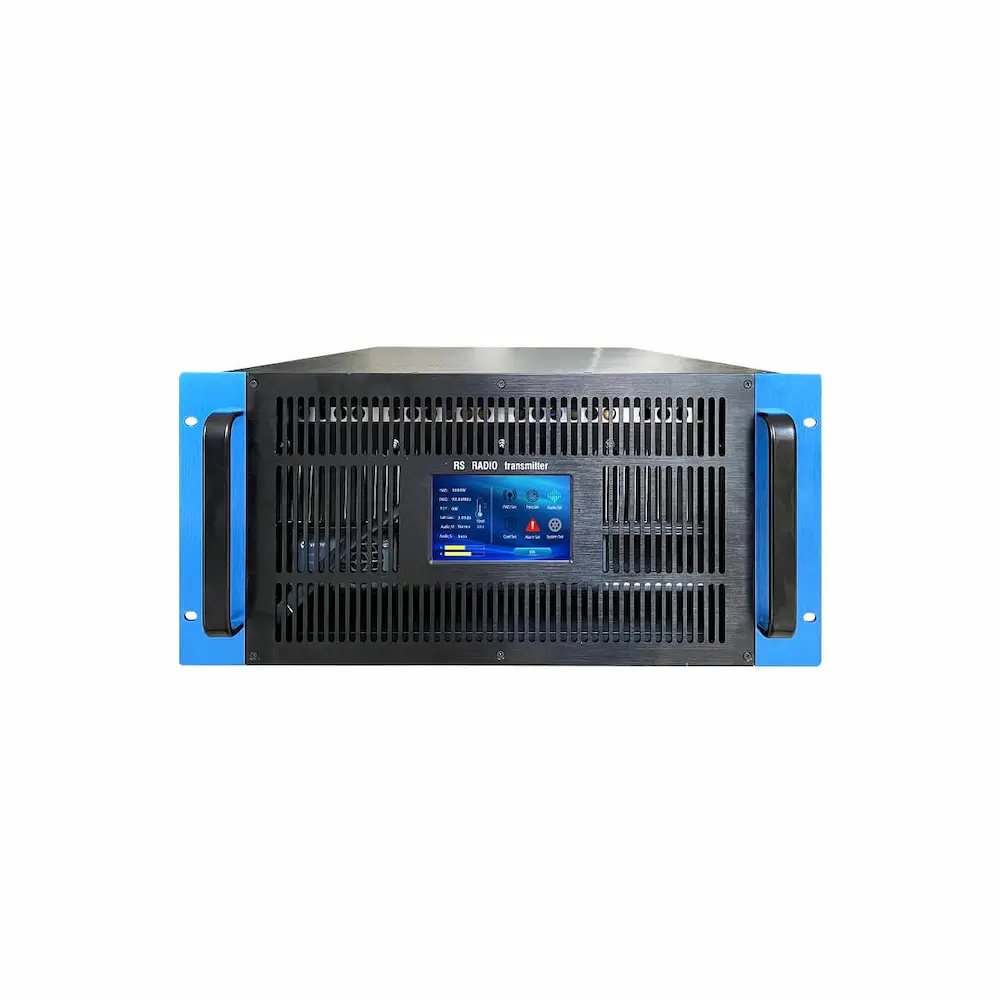

5000 Watt FM Transmitter
$9999 USD
Specifications
Technical Specifications
Everything you need to know about the RS-3000 Series transmitter -- performance, specifications, our company, and certifications.
Performance & Technology
FM Compact Transmitters RS-3000 Series is a range of modular broadcast FM transmitters designed to operate in the whole 87.5–108 MHz frequency range for FM radio broadcasting, with power range 3000, 3500, 4000, 5000W and 6000W. Superior audio quality and sound purity — High Power 5kW FM Transmitter Broadcast Equipment.
- Very high efficiency — more than 75% for a complete 3 kW amplifier
- Latest LDMOS technology for power modules, ultra-high RF efficiency (>80% typ.), software optimized for each power level
- Lowest weight and dimensions in the industry — lower heating, lower space occupied, lower maintenance needed
- Longer component lifespan, reduced electricity and cooling costs, fewer fans required
Key Features
- Analog and digital (AES/EBU) audio signal input directly

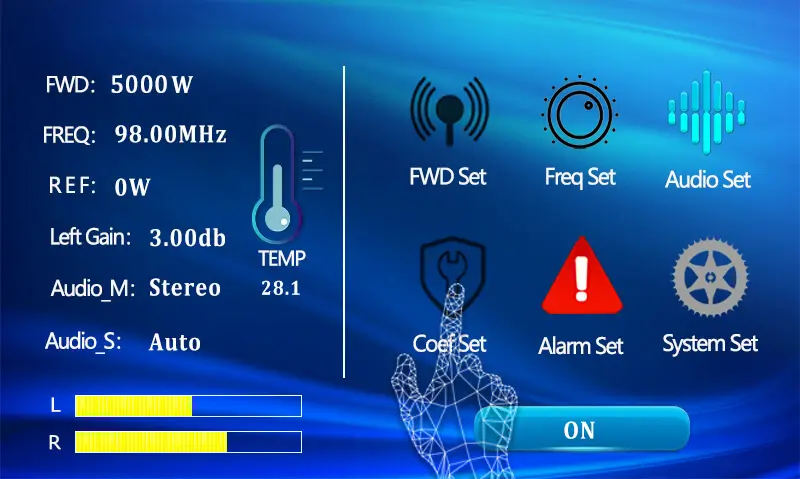

- 5-inch color LCD with touch panel displays all parameters in real-time
- Intelligent protection: over PF, over SWR, over temperature, voltage, current
- Real hot-plug structure — modules can be repaired without stopping the transmitter
- RS232/RS485 and TCP/IP communication interface ready for remote control
Protection System
Over/Under Voltage DC & AC, RF and power supply over-temperature, RF coaxial output open or short circuit protection. Capable of long working time on short/open loads at all phase angles without damage. Integrated AC mains filtering and lightning protection, with delayed re-energizing after mains power blackout to prevent damage from voltage peaks.
