Professional Equipment

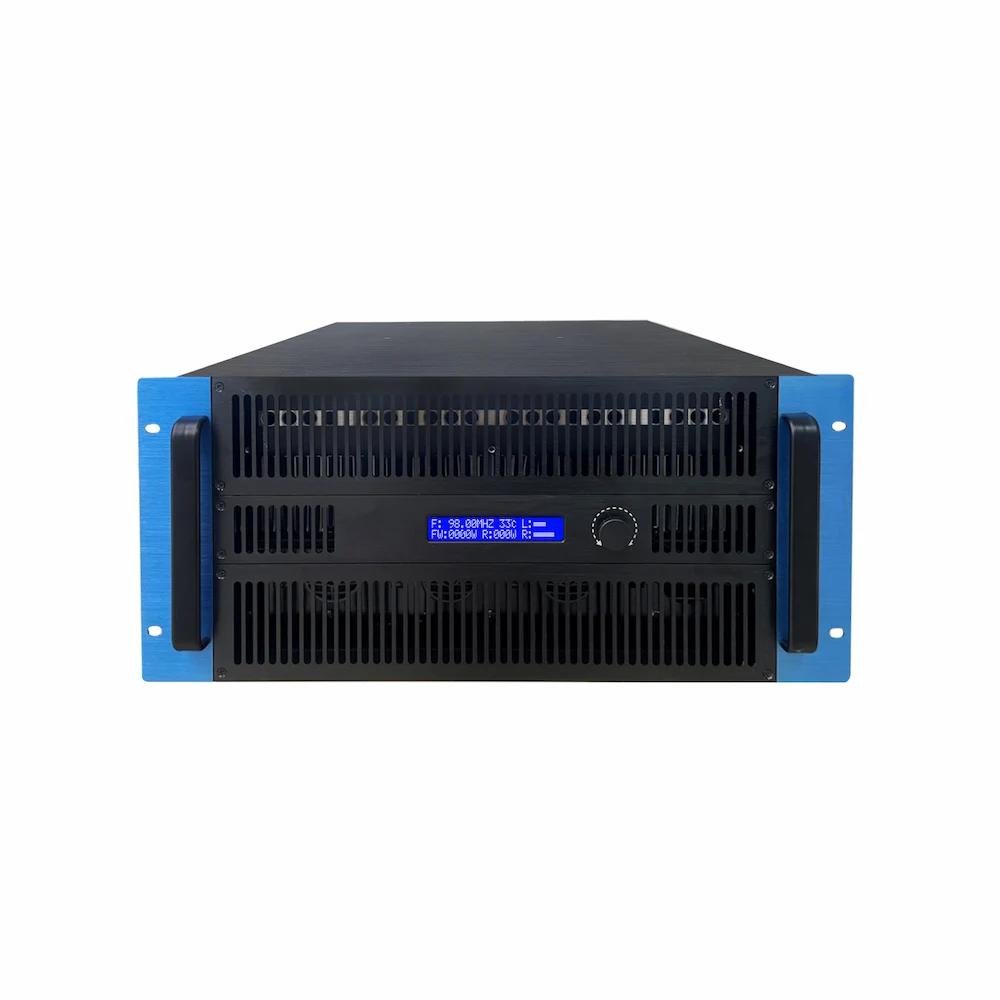

3000 Watt FM Transmitter
$6800 USD
Specifications
Power Output:
0W-3000W
Coverage Distance:
40-70 KM
Frequency Range:
87.5-108 MHz
Working Voltage:
AC100V-AC260V
Warranty:
5 Years
Certifications:
FCC, CE
Product Introduction
3KW - 6KW
Performance & Technology
The 3KW Series is a range of modular broadcast FM transmitters designed to operate across the full 87.5–108 MHz frequency range, with power configurations of 3000W, 3500W, 4000W, 5000W and 6000W. Built with superior audio quality and sound purity for professional High Power FM broadcast applications.
- Very high efficiency — more than 75% for a complete 3 kW amplifier
- Latest LDMOS technology for power modules, ultra-high RF efficiency (>80% typ.), software optimized for each power level
- Lowest weight and dimensions in the industry — lower heating, lower space occupied, lower maintenance needed
- Longer component lifespan, reduced electricity and cooling costs, fewer fans required
Key Features
- Analog and digital (AES/EBU) audio signal input directly
- Intelligent protection: over PF, over SWR, over temperature, voltage, current
- Real hot-plug structure — modules can be repaired without stopping the transmitter

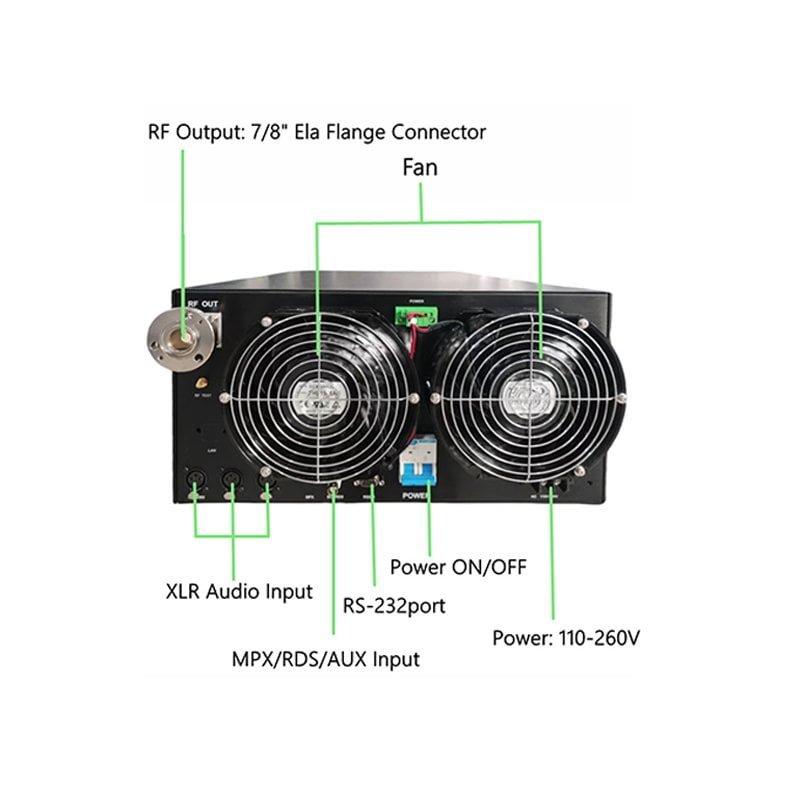

- RS232/RS485 and TCP/IP communication interface ready for remote control
Protection System
Over/Under Voltage DC & AC, RF and power supply over-temperature, RF coaxial output open or short circuit protection. Capable of long working time on short/open loads at all phase angles without damage. Integrated AC mains filtering and lightning protection, with delayed re-energizing after mains power blackout to prevent damage from voltage peaks.
