FM Radio Station Equipments
An FM broadcast transmitter kit is a complete transmission solution designed for FM radio stations. It typically includes an FM transmitter, broadcast antenna system, coaxial cable, RF connectors, and installation accessories required to put your station on air efficiently.
What Equipment Do I Need to Start an FM Radio Station?
Starting an FM radio station requires three core components -- an FM transmitter, an antenna, and a coaxial cable. These three pieces of equipment form the backbone of any broadcast setup. Additional equipment enhances audio quality and operational control.
How FM Broadcasting Works
An FM broadcast transmitter converts your audio signal into a radio frequency signal (87.5-108 MHz). That signal travels through a coaxial cable to an antenna mounted at height, which radiates it over your coverage area. Listeners tune their FM radios to your frequency and receive the broadcast in real time -- whether it's music, news, religious programming, or community announcements.

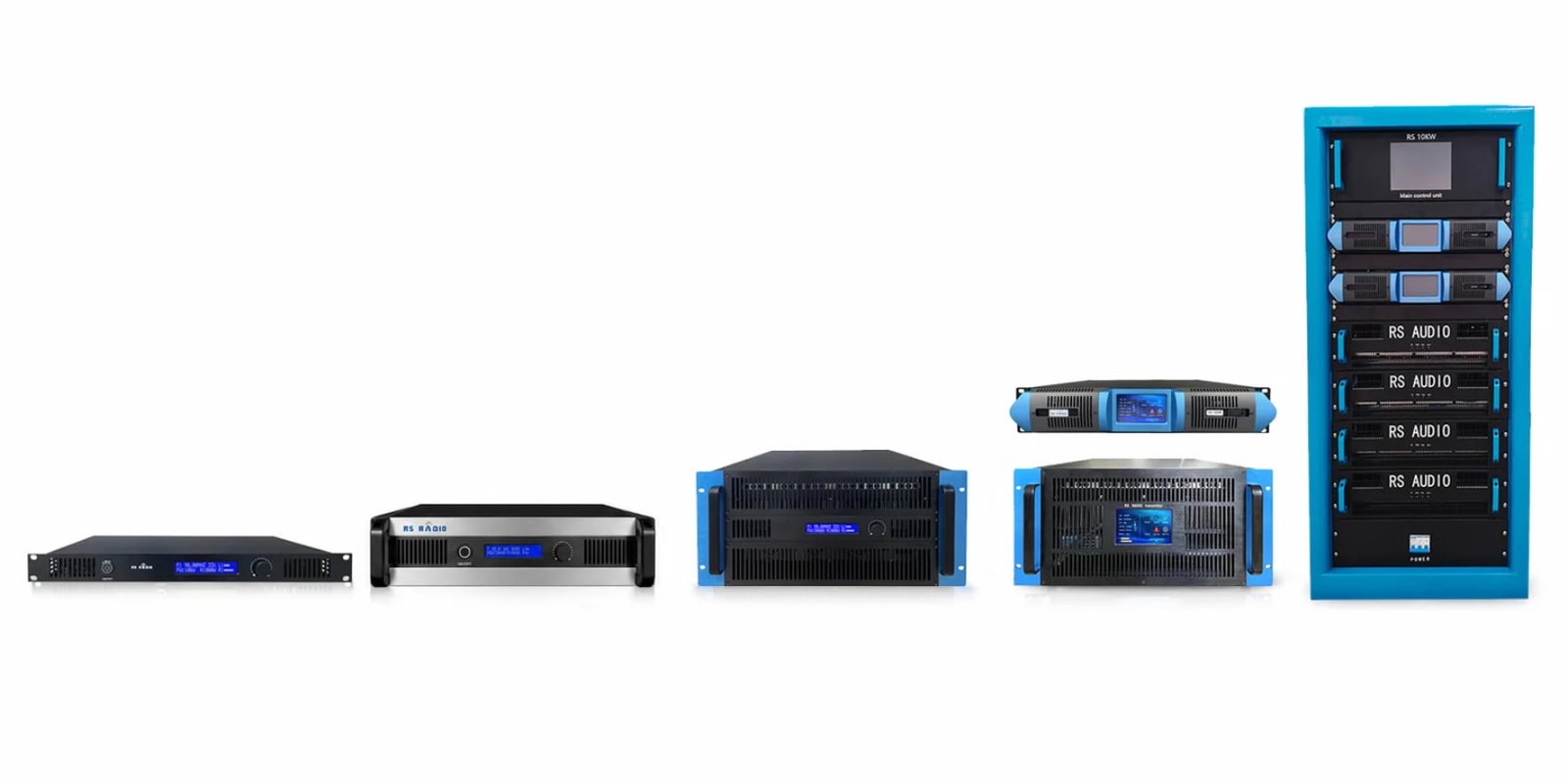

FM Broadcast Transmitter
The heart of your FM station. The transmitter generates the FM signal at your licensed frequency and amplifies it to your desired power level -- from 7W for a small community setup to 10KW for regional broadcasting. Power determines your coverage range.
- Available 7W to 10KW output power
- Frequency range: 87.5-108 MHz
- Over-temperature protection at 60°C
- FCC & CE certified

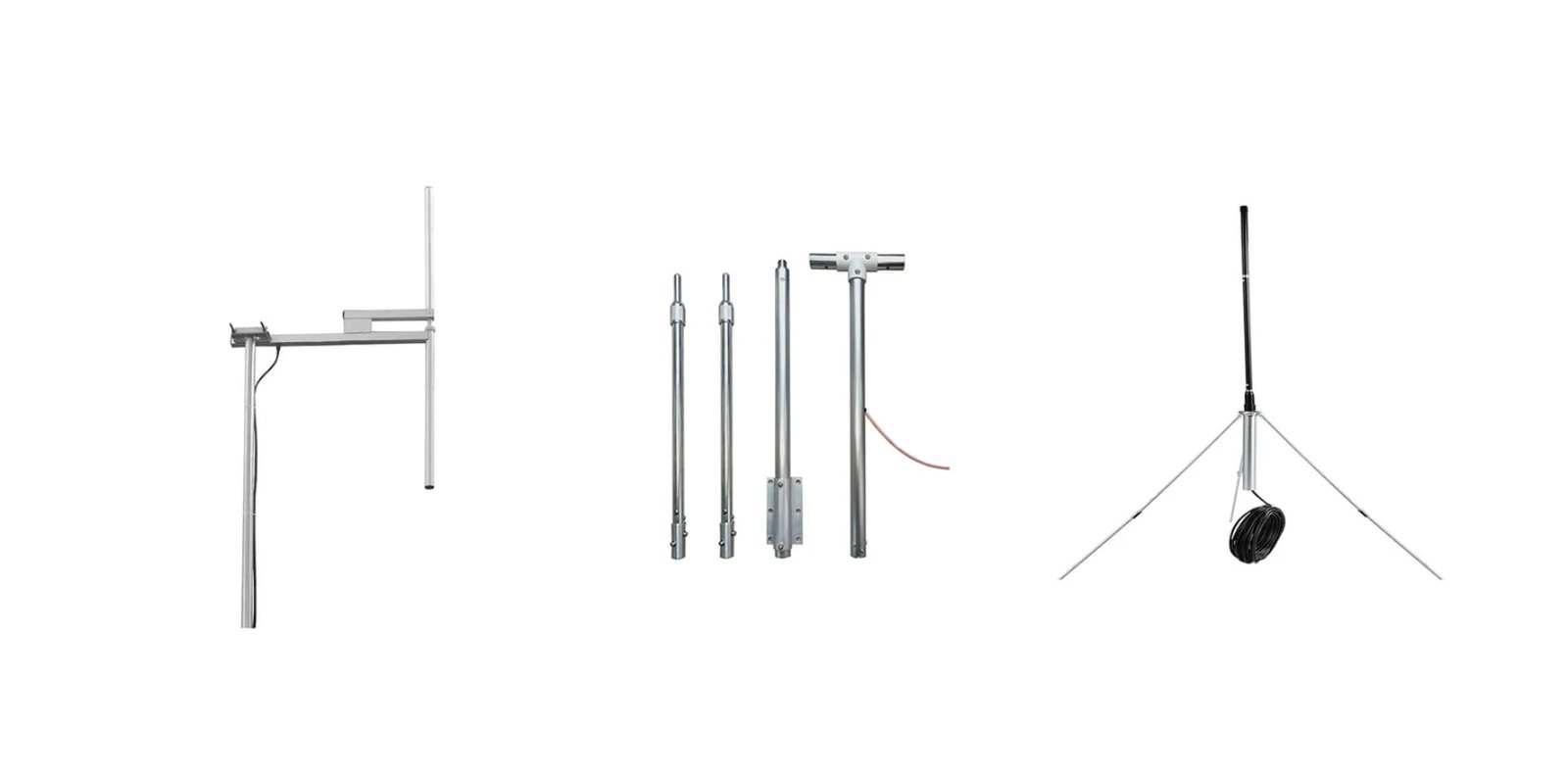

FM Broadcast Antenna
The antenna radiates your FM signal into the air. Mounted as high as possible -- on a tower, rooftop, or mast -- it determines how far and how evenly your signal travels. The number of antenna bays affects gain and coverage distance.
- 1-bay to 4-bay dipole configurations
- Handles 300W to 2000W+ power
- Omnidirectional horizontal radiation
- Weatherproof outdoor installation

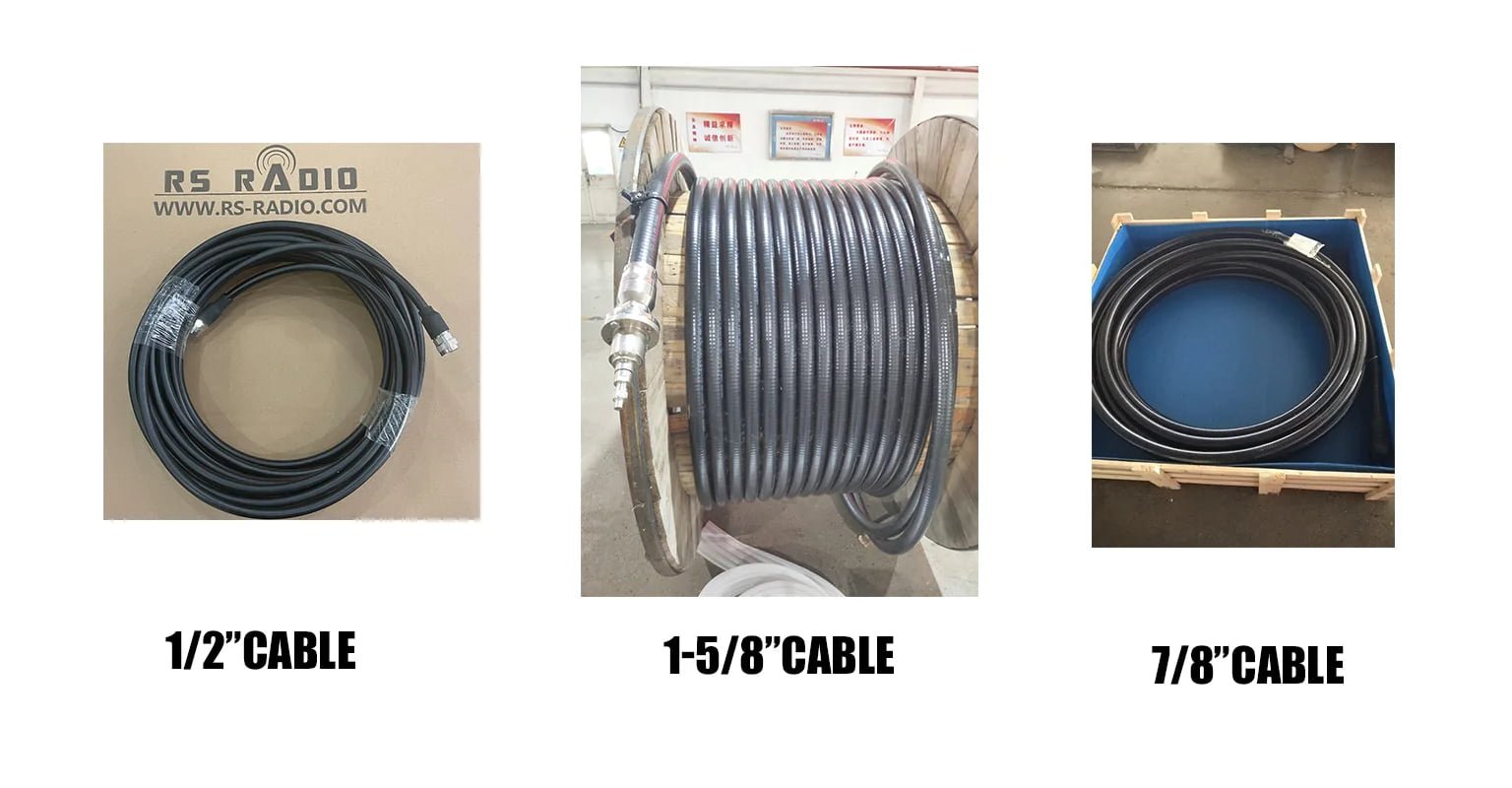

Coaxial Cable
The coaxial feeder cable connects your transmitter to your antenna. Signal loss increases with cable length, so choosing the right cable type and minimizing run length is critical. Supplied pre-terminated with connectors for easy installation.
- 1/2" low-loss coaxial feeder
- Available in 30m standard lengths
- Pre-fitted N-type connectors
- UV-resistant outdoor jacket
Audio Processor
An audio processor conditions your audio signal before it reaches the transmitter -- normalizing volume levels, applying compression and limiting, and ensuring your broadcast sounds loud, clear, and consistent to listeners on all types of radios.
- Multi-band dynamic processing
- Loudness optimization
- Stereo pilot and composite output
- Protects transmitter from overmodulation

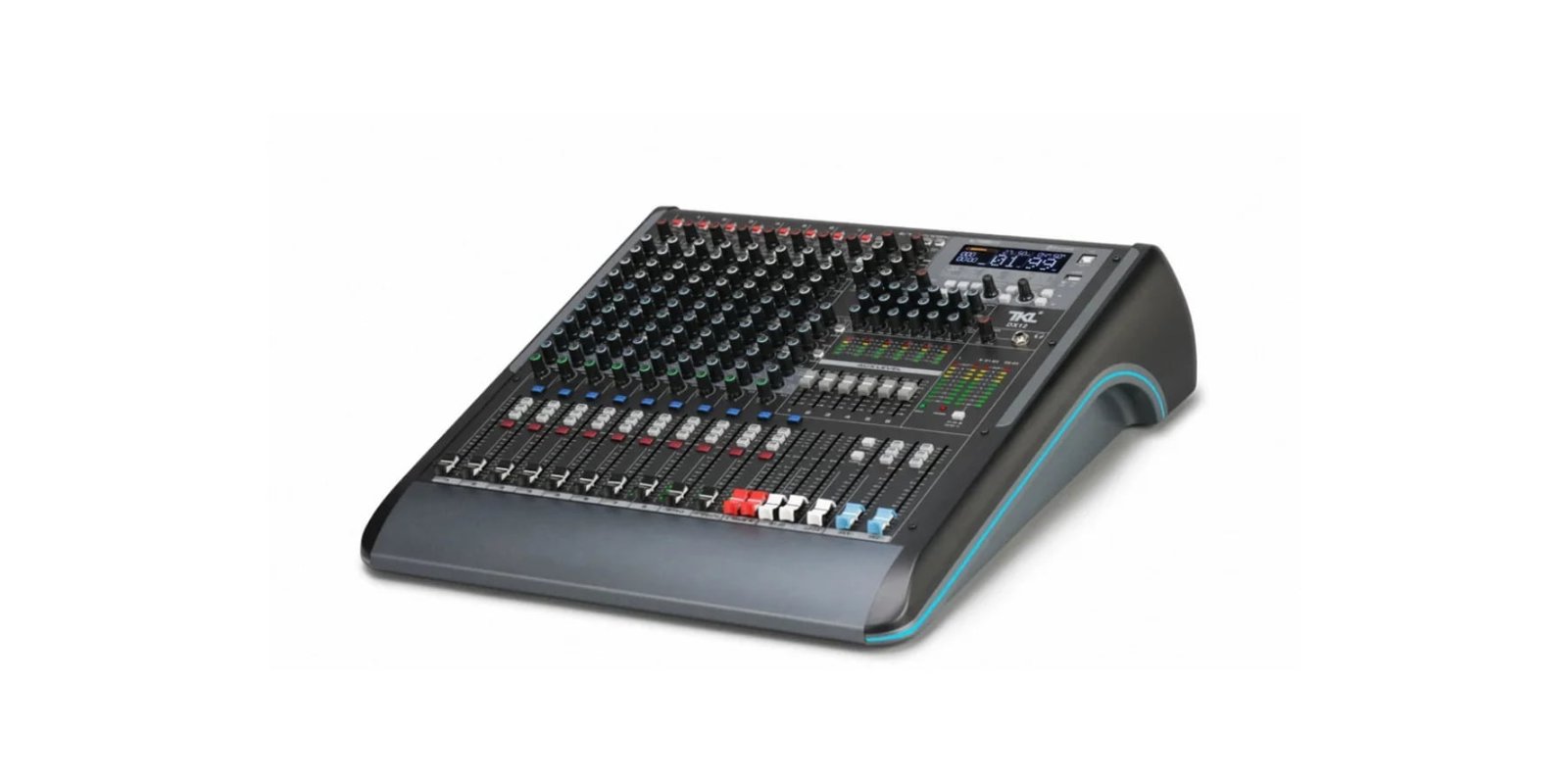

Broadcast Audio Mixer
The mixing console is your broadcast control center. It combines audio from microphones, music players, phone lines, and other sources -- letting your presenter manage live programming, adjust levels, and switch between sources in real time.
- Multiple XLR and line inputs
- On-air cue and talkback functions
- Balanced professional audio outputs
- Available in 4/7/8/12/16/32-channels

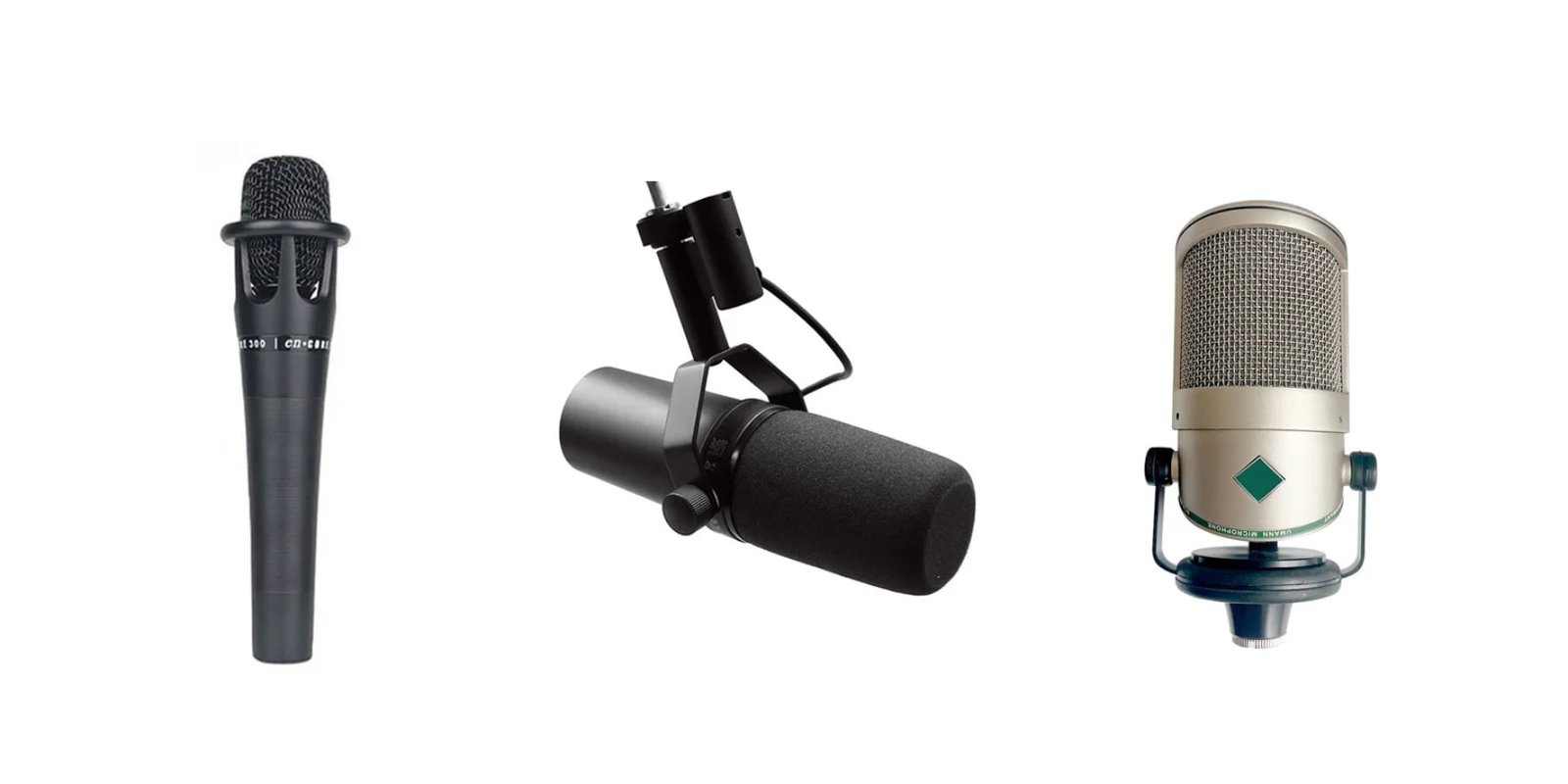

Microphones
For any station with live presenters, a broadcast-grade condenser or dynamic microphone is essential. Microphones capture the presenter's voice and feed it into the mixer. The number you need depends on how many on-air voices you have simultaneously.
- Cardioid polar pattern rejects room noise
- Balanced XLR output
- Shock mount reduces vibration noise
- Pop filter for plosive control

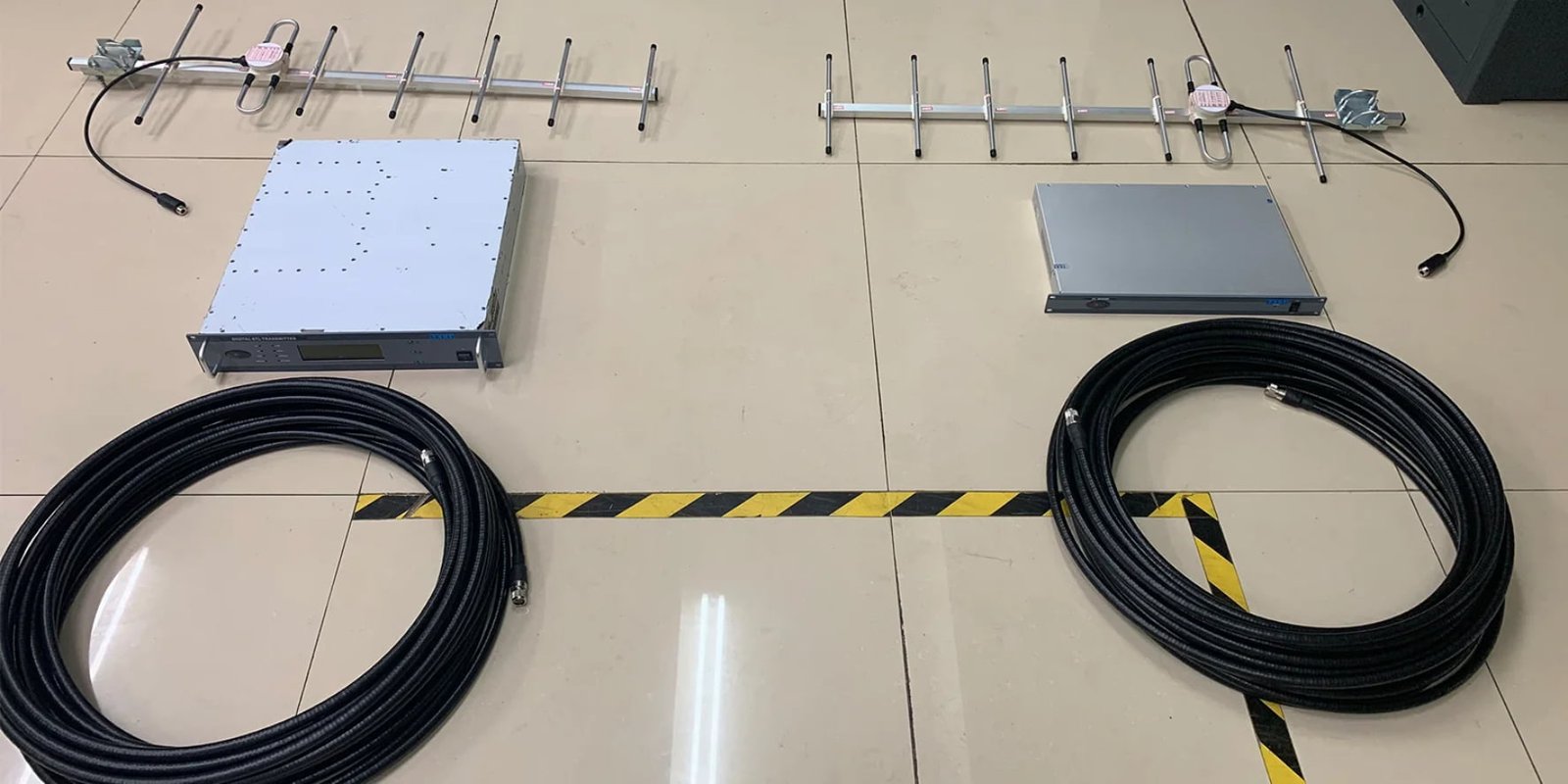

STL System
A Studio-to-Transmitter Link (STL) wirelessly sends audio from your studio to a remote transmitter site. This is needed when your studio and transmitter are in different locations -- for example, when your antenna is on a hilltop but your studio is in town.
- IP-based or dedicated RF link
- Low-latency audio transmission
- Eliminates long cable runs
- Redundant backup path options

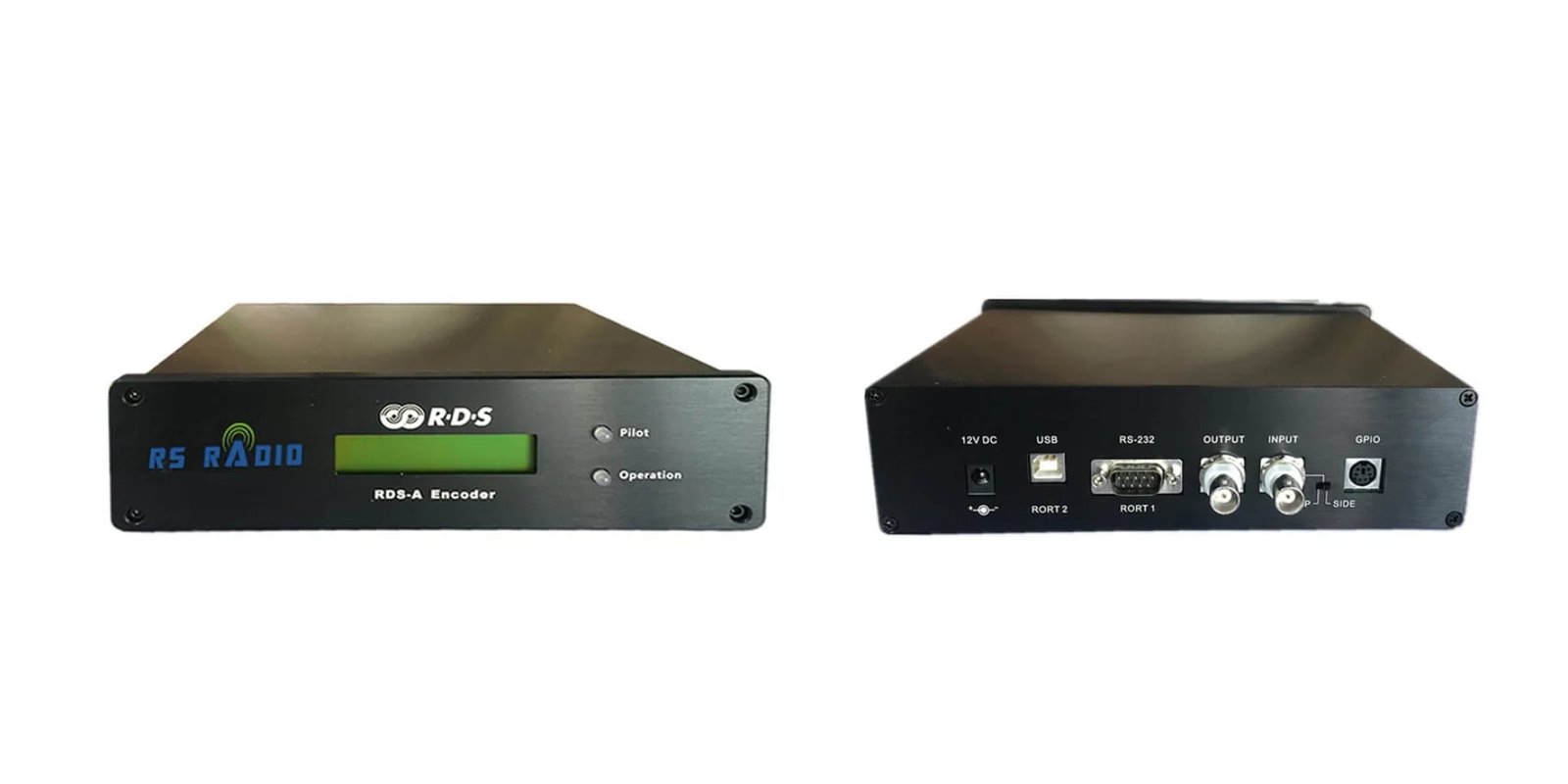

RDS Encoder
Radio Data System (RDS) lets you display your station name, song title, artist name, and scrolling text messages on listeners' car radios and digital FM receivers. It's a professional touch that enhances listener experience and brand recognition.
- Station name (PS) and RadioText display
- Traffic and emergency alerts (TA/TP)
- USB/RS-232 control interface
- Compatible with all FM transmitters

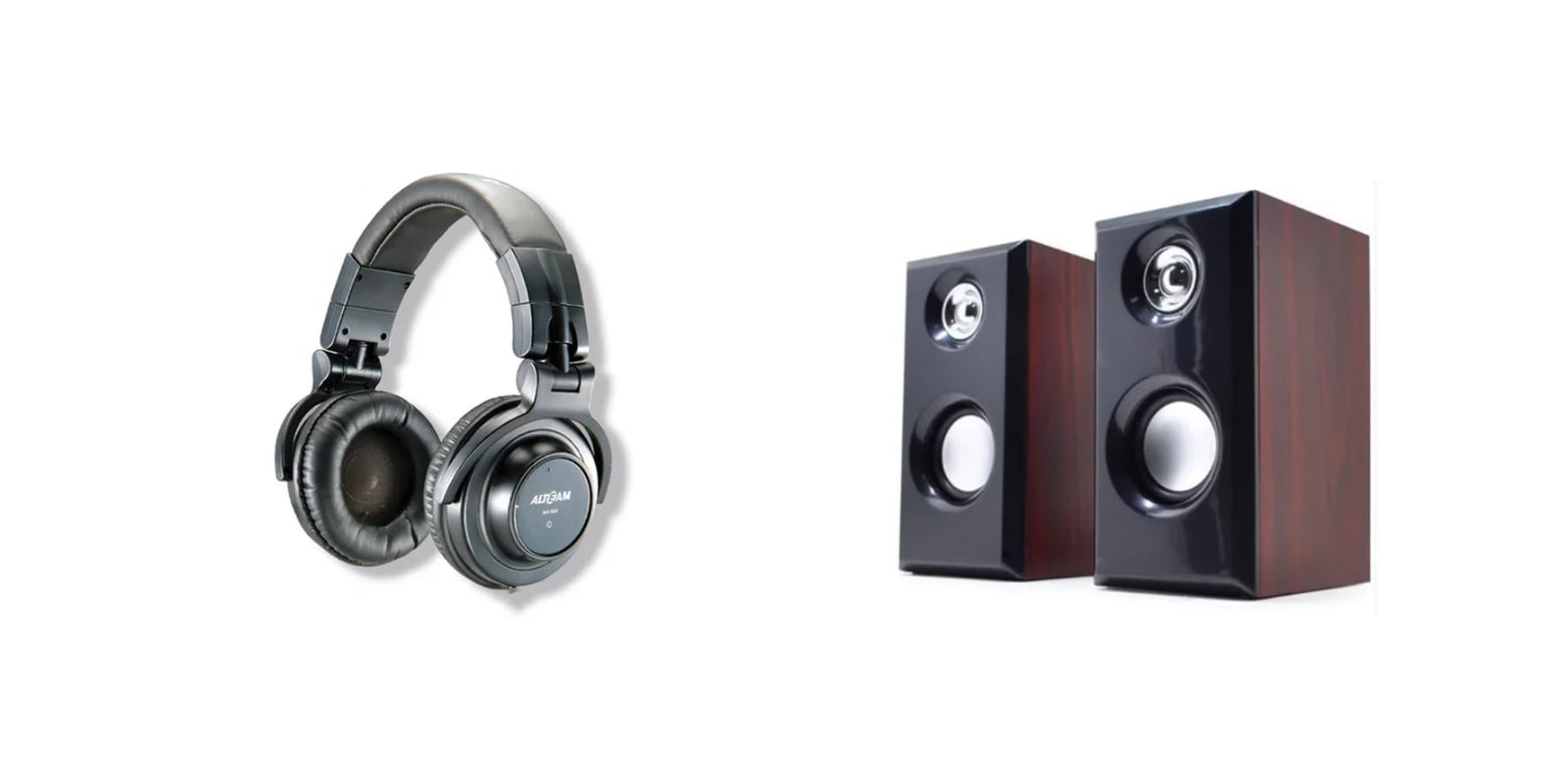

Audio Monitoring Equipment
Professional monitoring headphones and speakers let you accurately hear your broadcast signal in real time, ensuring your audio quality is always on point before it reaches your listeners.
- Professional studio monitoring headphones
- High-fidelity broadcast monitor speakers
- Wide frequency response for accurate audio
- Suitable for studio and on-site monitoring
FM Transmitter Power vs. Coverage Distance
Coverage distance varies with antenna height, terrain, and local RF environment. Values below are typical in flat open terrain.
| Transmitter Power | Typical Coverage | Best Use Case |
|---|---|---|
| 7W - 15W | 1 - 3 km | Church, school, small community |
| 50W - 100W | 3 - 13 km | Drive-in cinema, campus, small town |
| 300W - 500W | 15- 25 km | Community radio, regional coverage |
| 1KW - 2KW | 25 - 60 km | City radio station, wide area broadcast |
| 3KW - 5KW | 40 - 80 km | Provincial/state broadcaster |
| 10KW+ | 100 - 150KM | National/commercial broadcaster |
How Much Does FM Radio Station Equipment Cost?
The total cost of your FM station depends primarily on the transmitter power you need. Below is a realistic cost breakdown for three common station sizes -- from a small community setup to a full commercial station.
Small Community Station
- FM Transmitter (50-100W) $450 - $650
- FM Dipole Antenna $80 - $120
- Coaxial Cable (30m) $70 - $100
- Audio Processor $100 - $300
- Mixer + Microphone $100 - $400
- STL / RDS / Monitoring Optional
Ideal for churches, schools, drive-in cinemas, and small community radio with 3-12 km coverage.
Regional Radio Station
- FM Transmitter (300W-1KW) $1,340 - $1,890
- FM Antenna (1-bay) $325
- Coaxial Cable (30m) $360
- Audio Processor $300 - $800
- Mixer + Microphones $300 - $800
- RDS Encoder $420
Suitable for community radio stations, religious broadcasters, and city-wide coverage of 15-30 km.
Commercial Broadcaster
- FM Transmitter (2KW-10KW) $3,580 - $23,000+
- FM Antenna (4-bay) $1,000 - $3,000
- Coaxial Cable (custom length) $400 - $1,500
- Professional Audio Processor $1,000 - $3,000
- Studio Mixer + Mics $800 - $3,000
- STL + RDS + Monitoring $1,500 - $5,000
For commercial FM stations, national broadcasters, and operators requiring 30-150+ km coverage.
How to Reduce Your FM Station Setup Cost
Transmitter + antenna + cable kits are priced lower than buying components separately.
Eliminating distributors and resellers can save 20-40% compared to retail pricing.
Match transmitter power to your actual coverage need -- overpowering wastes budget.
We offer free shipping to most countries worldwide, saving hundreds on freight costs.
Start with the three core items and add optional equipment as your station grows.
A 5-year warranty lowers your total cost of ownership versus cheaper, short-warranty products.
Which Equipment Is Necessary and Which Is Optional?
Not all FM station equipment is created equal. Three items are non-negotiable -- without them, you simply cannot broadcast. The remaining six items enhance your station's quality and capabilities, and can be added over time.
| Equipment | Status | Why It Matters | Without It |
|---|---|---|---|
|
FM Broadcast Transmitter
|
Essential | Generates and amplifies your FM signal. Without a transmitter, there is no radio signal to broadcast. | No broadcast possible |
|
FM Broadcast Antenna
|
Essential | Radiates the transmitter's signal into the air. Antenna height and gain directly determine your coverage radius. | Signal cannot be radiated |
|
Coaxial Cable
|
Essential | Connects the transmitter to the antenna. The only physical link between your transmitter output and your antenna input. | Transmitter and antenna cannot connect |
|
Audio Processor
|
Recommended | Normalizes audio levels and prevents overmodulation. Without it, your broadcast may sound uneven or distorted on some radios. | Poor audio consistency |
|
Broadcast Audio Mixer
|
Recommended | Required for live programming with presenters. Lets you blend multiple audio sources in real time. Not needed for automated music-only broadcasts. | No live presenter capability |
|
Microphones
|
Recommended | Essential if you have live presenters, pastors, teachers, or announcers. Not required for automated or music-only broadcasts. | No live voice broadcasting |
|
STL System
|
Optional | Only needed when studio and transmitter are at separate locations. If your transmitter is co-located with your studio, an STL is unnecessary. | Only affects remote setups |
|
RDS Encoder
|
Optional | Adds station name and song info to listeners' radio displays. Professional and recommended for commercial stations, but not required to broadcast. | No text display on radios |
|
Monitoring Equipment
|
Optional | Helps you verify your broadcast is working correctly and catch problems early. Increasingly important as your station grows in audience and revenue. | Harder to detect outages |
Minimum Viable FM Station (3 Items)
These three items are the absolute minimum required to put an FM signal on air. A transmitter, antenna, and coaxial cable -- together, they form a complete broadcast chain.
-
FM Broadcast Transmitter
-
FM Broadcast Antenna
-
Coaxial Feeder Cable
We sell all three as a complete kit -- transmitter + antenna + cable -- at a bundled price with free shipping.
Recommended Full Station Setup (6 Items)
For a professional-sounding station with live programming, add an audio processor, mixer, and microphones to your core three items.
-
FM Transmitter + Antenna + Coaxial Cable
-
Audio Processor (broadcast quality)
-
Broadcast Audio Mixer
-
Broadcast Microphone(s)
Add RDS encoder, STL, and monitoring equipment as your station matures and audience grows.
Can One Supplier Provide Everything for My FM Station?
Yes. Risheng Electronics manufactures and supplies FM transmitters, antennas, and coaxial cables -- the three essential items every FM station needs -- directly from our factory in Liaoning, China. We ship to customers in over 50 countries worldwide.
Why Buying from One Supplier Saves You Time and Money
When transmitter, antenna, and cable all come from the same source, impedance matching, power ratings, and connector types are guaranteed to work together. No compatibility guesswork.
One order, one shipment, one customs declaration. Reduces paperwork, import complexity, and the risk of components arriving at different times.
One support contact for your entire system. No finger-pointing between multiple vendors. Our engineers support you via WhatsApp group with the full system context.
We are the manufacturer -- not a reseller. You buy at source pricing without distributor markups, and can negotiate bundle pricing for complete station kits.
Warranty
Direct Manufacturer
We manufacture every FM transmitter, antenna, and cable ourselves at our factory in Liaoning, China -- giving you full quality control and source pricing.
FCC & CE Certified
All transmitters carry FCC and CE certification, ensuring compliance with US, European, and international broadcast regulations. Documentation provided with every order.
5-Year Warranty
Every FM transmitter comes with a 5-year warranty -- one of the longest in the industry. Our engineers support you via WhatsApp throughout the warranty period.
Free Worldwide Shipping
We offer free shipping to most countries worldwide, including the USA, Nigeria, Kenya, Philippines, Mexico, and throughout Africa and Latin America.
WhatsApp Engineer Support
After your purchase, we create a dedicated WhatsApp group with you and our technical engineers -- providing installation guidance, troubleshooting, and ongoing support.
Sell Individual Units
Unlike some manufacturers who only sell to large distributors, we sell single units directly to churches, schools, community stations, and individual broadcasters worldwide.
What Risheng Can Supply for Your FM Station
| Equipment Category | Available from Risheng | Product Range |
|---|---|---|
| FM Broadcast Transmitter | Yes -- Core Product | 7W, 15W, 50W, 80W, 100W, 300W, 1KW, 2KW, 3KW-5KW, 10KW+ |
| FM Broadcast Antenna | Yes -- Core Product | 1-bay and 4-bay FM dipole antennas, 300W-2000W rated |
| Coaxial Cable | Yes -- Core Product | 1/2" coaxial feeder cable, 30m with connectors, custom lengths available |
| Complete Station Kits | Yes -- Bundled Kits | Transmitter + Antenna + Cable kits at all power levels |
| Audio Processor | Consult Us | We can advise on suitable studio equipment to complement your transmitter |
| Broadcast Mixer & Microphones | Consult Us | We can advise on suitable studio equipment to complement your transmitter |
| STL / RDS / Monitoring | Consult Us | We can source or recommend appropriate accessories for your station |
Ready to Build Your FM Radio Station?
Tell us your target coverage area and we'll recommend the right transmitter power, antenna configuration, and cable length -- then quote you a complete kit price with free shipping to your country.
Frequently Asked Questions
The minimum equipment to start an FM radio station is three items: an FM broadcast transmitter, an FM broadcast antenna, and a coaxial feeder cable to connect them. These three components form a complete broadcast chain. The transmitter generates your FM signal, the cable carries it to the antenna, and the antenna radiates it to your listeners. Everything else -- audio processors, mixers, microphones -- enhances quality but is not strictly required to put a signal on air.
Coverage distance depends on transmitter power, antenna height, and local terrain. As a general guide: 50-100W covers 5-15 km, 300W-1KW covers 20-80 km, 2KW-5KW covers 80-120 km, and 10KW+ can reach 150 km or more. Antenna height has a significant impact -- the higher the antenna, the greater the coverage for the same power level.
Yes. Risheng Electronics offers complete FM station kits that include the transmitter, antenna, and coaxial cable -- all matched to work together at your required power level. Kits are available from 50W to 2KW and above. Buying a kit is simpler than sourcing components separately, ensures compatibility, and is typically priced lower than buying individual items. We ship to most countries worldwide with free shipping.
All Risheng FM transmitters come with a 5-year warranty -- significantly longer than the industry standard of 1-2 years. During the warranty period, our engineers provide remote technical support via WhatsApp. If a transmitter has a problem, we create a group chat with you and our engineering team to diagnose and resolve the issue. Replacement parts for small components are provided free of charge (customer pays shipping).
An RDS encoder is optional -- you can broadcast perfectly well without one. However, an RDS encoder lets you display your station name, song title, and artist name on listeners' car radios and digital FM receivers. For commercial stations and stations that want a professional image, it's a worthwhile addition. For small community stations, churches, or schools, it's generally not a priority.
